Tapered Amplifier

img-9

mini

TA

1 W @ 670 nm

1.5 W @ 765 nm (covering 767 nm and 770 nm)
3 W @ 780 nm
2 W @ 795 nm
2 W @ 852 nm

2.5 W @ 895 nm

img-10
img-11

ONE OF OUR NEWEST INNOVATIONS

As a tapered amplifier, the miniTA has a fiber-coupled input and collimated output beam and is available in an optimized butterfly package with 14 thicker pins. This hermetically sealed housing is particularly advantageous in industrial applications, as the thicker pins guarantee an ideal supply of power. Furthermore, the forming of the beam, as well as thermal management, are also integrated. Users can enjoy the easy plug-and-play aspect of the fiber plug of the seed laser. An Evaluation Board is available making commissioning even easier and testing faster.

Product Highlights

img-12

Keeps linewidth from seeder

img-13

Very good SMSR (typ. 50 dB)

img-14

Integrated beam collimation

img-15

Thermal management by integrated thermoelectric cooler and thermistor

img-16

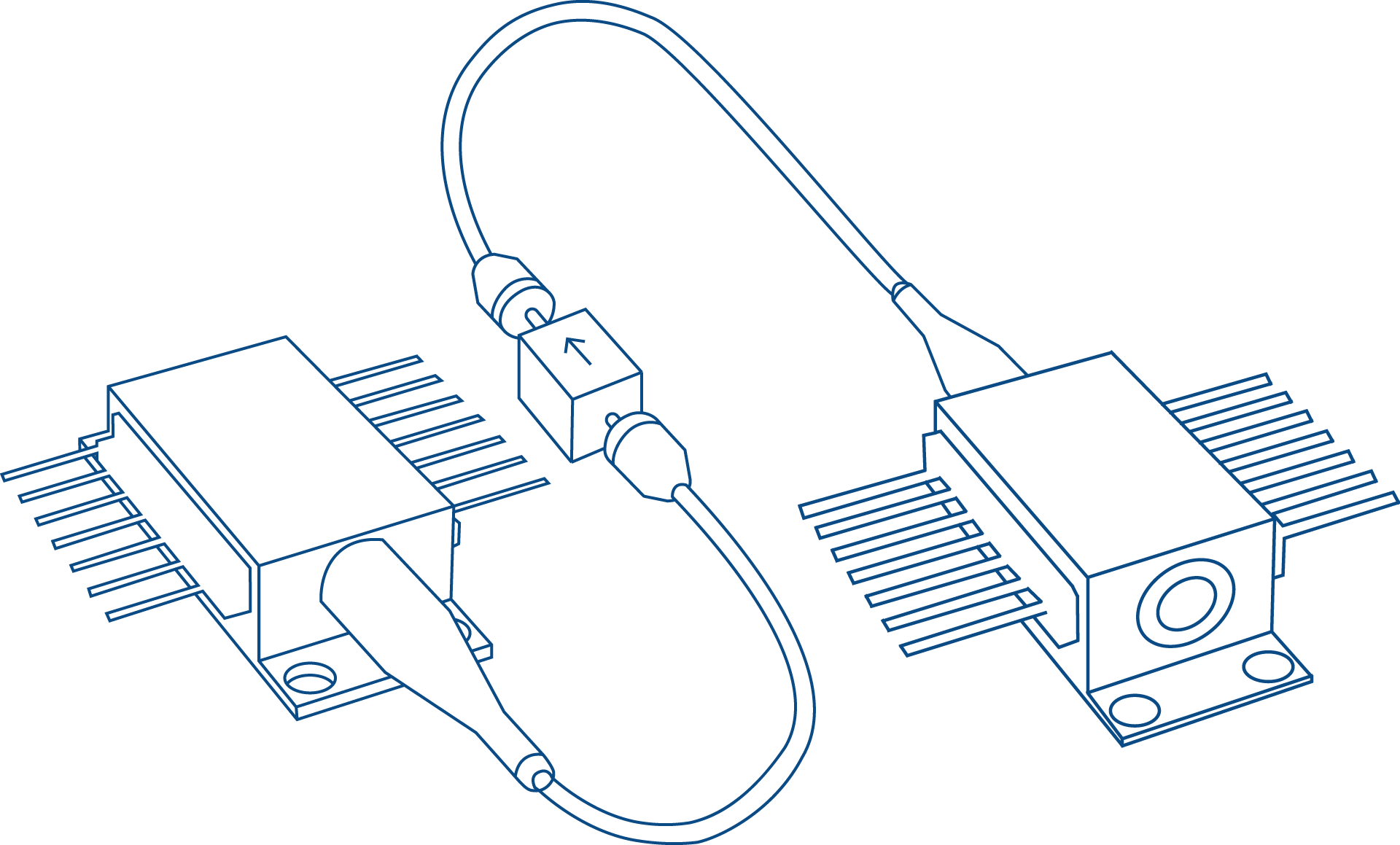

Plug and play with fiber pigtail seed lasers

img-17

Optimized, hermetically sealed butterfly package with 14 thicker pins for ideal power supply

Your Advantages

img-18

Ease of use thanks to high integration level

img-19

Usable for industry purposes due to hermetically sealed butterfly package

img-20

Circular beam profile is beneficial for fiber coupling and focusing

img-21

with evaluation board for faster testing and preparation

img-22
img-23

Operating a miniTA is easily done:

Download

DATASHEET 670 nm

PDF

DATASHEET 765 nm

PDF

DATASHEET 780 nm

PDF

DATASHEET 795 nm

PDF

DATASHEET 850 nm

PDF

DATASHEET 895 nm

PDF

Flyer

PDF

App Note

PDF

Evaluation Board FOR Arroyo Driver

PDF

Evaluation Board FOR Thorlabs Driver

PDF

Evaluation Board FOR DIVERS Driver

PDF

User Guide Evaluation Board

PDF

DRAWINGS

PDF

Applications

Interferometry

Spectroscopy
